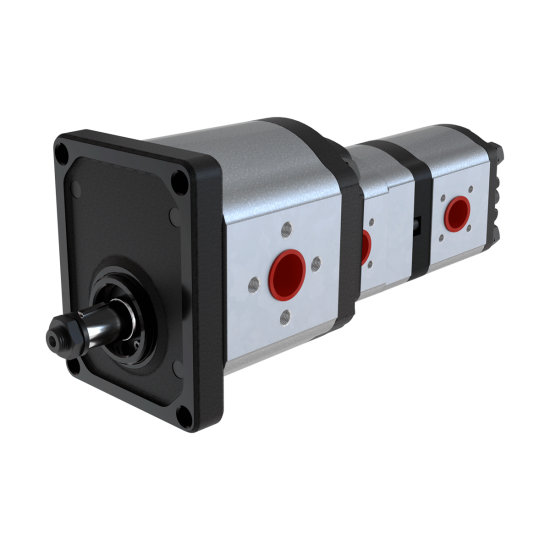

Aluminum Body Tandem Pump - Group 30/20/20

Aluminum Body Tandem Pump - Group 30/20/20
Aluminum Body Tandem Pump - Group 30/20/20

Description

Aluminum Body Tandem Gear Pumps consist of 3 pumps combined.

These products are used in systems where triple pump feeding is generally required.

They provide passage between oil compartments, but are not suitable for different oil use.

Group 30 - Group 20 - Group 20 tandem gear pumps have a displacement capacity ranging from 19.0 cc to 100.0 cc.

  • Model: AP30/AP20/AP20
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Specifications
Gear Type Normal Gear
Displacement 19,0 cc – 100,0 cc
Max.Speed 3000 rpm
Max.Pressure 230 bar
Body Type Aluminum Body
Tags: hydraulic pumps , gear pumps , hydraulic gear pumps , aluminum body gear pump , aluminum gear pump , aluminum tandem pump , tandem pump , aluminum tandem gear pump
Pump type Displacement(cc³/dev) Max.Pressure(Bar) Max.Speed(Rpm) Min.Speed(Rpm)
AP30.190/AP20.***/*** 19,0 230 3000 500
AP30.220/AP20.***/*** 22,0 230 3000 500
AP30.250/AP20.***/*** 25,0 230 3000 500
AP30.280/AP20.***/*** 28,0 230 3000 500
AP30.320/AP20.***/*** 32,0 230 2750 500
AP30.350/AP20.***/*** 35,0 210 2750 500
AP30.380/AP20.***/*** 38,0 210 2750 500
AP30.420/AP20.***/*** 42,0 210 2750 500
AP30.450/AP20.***/*** 45,0 210 2500 500
AP30.510/AP20.***/*** 51,0 200 2250 500
AP30.560/AP20.***/*** 56,0 180 2000 500
AP30.610/AP20.***/*** 61,0 180 2500 400
AP30.730/AP20.***/*** 73,0 170 2500 400
AP30.820/AP20.***/*** 82,0 160 2000 400
AP30.900/AP20.***/*** 90,0 150 2000 400
AP30.1000/AP20.***/*** 100,0 140 2000 400
