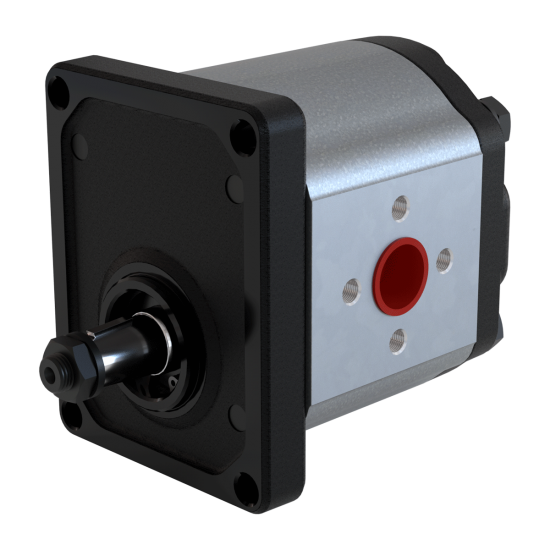

Aluminum Body Gear Pump - Group 30
Description
Gear pumps with aluminum body.
The series 30 has a transmission capacity ranging from 17.0 cc to 100.0 cc.
- Model: AP30
$0.00
Ex Tax: $0.00
Specifications | |
Gear Type | Normal Gear |
Displacement | 17,0 cc – 100,0 cc |
Max.Speed | 3000 rpm |
Max.Pressure | 250 bar |
Body Type | Aluminum Body |
Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
AP30.170 | 17,0 | 250 | 3000 | 500 |
AP30.220 | 22,0 | 250 | 3000 | 500 |
AP30.270 | 27,0 | 250 | 3000 | 500 |
AP30.320 | 32,0 | 240 | 3000 | 500 |
AP30.340 | 34,0 | 240 | 3000 | 500 |
AP30.380 | 38,0 | 240 | 3000 | 500 |
AP30.430 | 43,0 | 230 | 3000 | 500 |
AP30.470 | 47,0 | 230 | 2500 | 500 |
AP30.510 | 51,0 | 210 | 2500 | 500 |
AP30.560 | 56,0 | 200 | 2500 | 500 |
AP30.610 | 61,0 | 180 | 2500 | 400 |
AP30.730 | 73,0 | 170 | 2500 | 400 |
AP30.820 | 82,0 | 160 | 2000 | 400 |
AP30.900 | 90,0 | 150 | 2000 | 400 |
AP30.1000 | 100,0 | 140 | 2000 | 400 |
