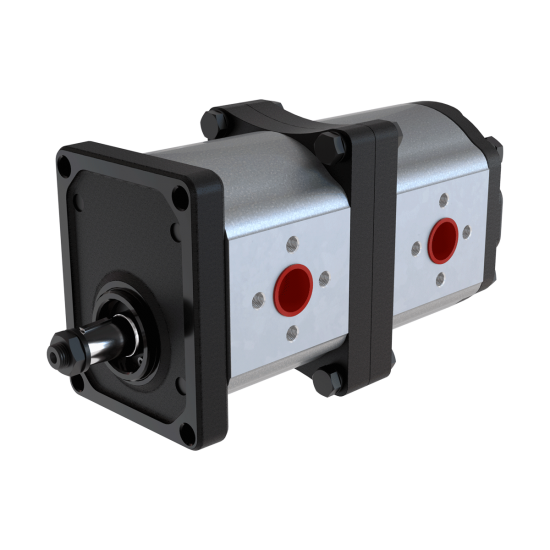

Aluminum Body Tandem Pump - Group 30/30
Description
Aluminum Body Tandem Gear Pumps consist of 2 pumps combined.
These products are used in systems where double pump feeding is generally required.
They provide passage between oil compartments, but are not suitable for different oil use.
Group 30 - Group 30 tandem gear pumps have a displacement capacity ranging from 17.0 cc to 100.0 cc.
- Model: AP30/AP30
$0.00
Ex Tax: $0.00
Specifications | |
Gear Type | Normal Gear |
Displacement | 17,0 cc – 100,0 cc |
Max.Speed | 3000 rpm |
Max.Pressure | 250 bar |
Body Type | Aluminum Body |
Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
AP30.170/170 | 17,0 / 17,0 | 250 | 3000 | 400 |
AP30.220/220 | 22,0 / 22,0 | 250 | 3000 | 400 |
AP30.270/270 | 27,0 / 27,0 | 250 | 3000 | 400 |
AP30.320/320 | 32,0 / 32,0 | 240 | 3000 | 400 |
AP30.340/340 | 34,0 / 34,0 | 240 | 3000 | 400 |
AP30.380/380 | 38,0 / 38,0 | 240 | 3000 | 400 |
AP30.430/430 | 43,0 / 43,0 | 230 | 3000 | 400 |
AP30.470/470 | 47,0 / 47,0 | 230 | 2500 | 400 |
AP30.510/510 | 51,0 / 51,0 | 210 | 2500 | 400 |
AP30.560/560 | 56,0 / 56,0 | 200 | 2500 | 400 |
AP30.610/610 | 61,0 / 61,0 | 180 | 2500 | 400 |
AP30.730/730 | 73,0 / 73,0 | 170 | 2500 | 400 |
AP30.820/820 | 82,0 / 82,0 | 160 | 2500 | 400 |
AP30.900/900 | 90,0 / 90,0 | 150 | 2000 | 400 |
AP30.1000/1000 | 100,0 / 100,0 | 140 | 2000 | 400 |
